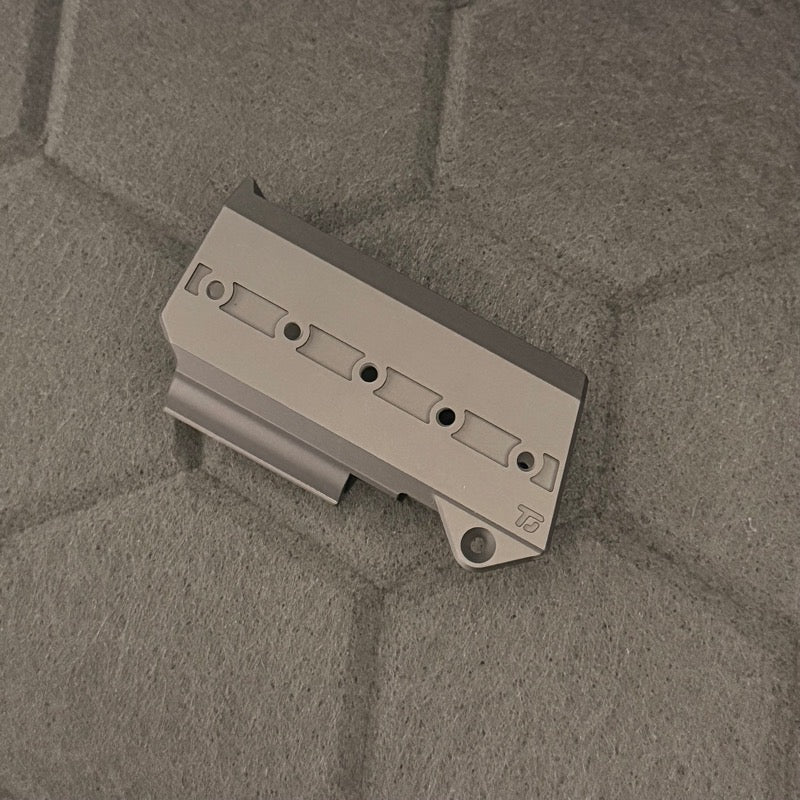

Forward Halo for Flux Raider 365

The Forward Halo for the Flux Defense Raider365 is a versatile forward optic and accessory mount integrating the TLOK mounting system (What is TLOK? - Read More).

SLIM & THICC versions are both compatible with the Aluminum and Ultralight models

SLIM Features:

• 2 RMR or RMSc direct mounting location op top
• 4 TLOK mounting location os Left and Right sides
• 3 TLOK mounting location on top
• CNC machined 7075 Series Aluminum
• Internal width is 1" for linear comps or other attachments
• Fuse slide will slide thru
• 365-F10 fits under the Halo for easy field stripping.
• Included Set Screws to block off holes on top to avoid gasses on optic
• Optional set screw packs available as an add-on to plug the side holes
• Not ideal for slide mounted optic, Halo is right in the line of sight
• Suppressor sizing: 6.5” Threaded barrel - if OEM shroud would contact suppressor then the added height of this Halo will allow the suppressor to function

THICC Features:

• 2 RMR or RMSc direct mounting location op top
• 4 TLOK mounting location os Left and Right sides
• 3 TLOK mounting location on top
• CNC machined 7075 Series Aluminum
• Internal width is 1.45" for suppressors or other barrel mounted devices
• Fuse slide will slide thru
• 365-F10 fits under the Halo for easy field stripping.
• Included Set Screws to block off holes on top to avoid gasses on optic
• Optional set screw packs available as an add-on to plug the side holes
• Not ideal for slide mounted optic, Halo is right in the line of sight
• Supressor sizing:
  • 3.1" Threaded Barrel - Suppressor must be less than 1.15" Diameter
  • 3.7" Threaded Barrel - Suppressor must be less than 1.3" Diameter
  • 4.3" Threaded Barrel - Suppressor must be less than 1.3" Diameter
  • For Suppressors with a girth larger than 1.3" checkout our Curvy Side Stick
  • Sizing may vary depending on how much movement side to side and up and down your FCU and barrel have when installed in the chassis. As well as movement from your suppressor if it requires a booster.

Notes:

1. RMR 6-32 bolts not included or RMSc M4 Bolts not included as typically included with all optics.
2. Some RMSc optic do not allow adjustment down far enough to sight in. We suggest RMR or newer RMSc optics.
3. The Raider UL is made of polymer and has some play in the chassis, while we haven't experienced it, under extreme use optic may not return to zero.
4. We recommend lock tight on all three mounting bolts.
5. When using Fuse length slides check bottom install screws on UL chassis as they may protrude and scratch the dust cover, grind/file those down in this is an issue.

Raider UL may not torque down to 20 in/lbs without screws extending too far into the shroud, file scores down to avoid damaging slide, suppressor. Or tighten till they start to extend thru and stop.
